FA127RF77-Y0.75KW詳細信息
FA127RF77-Y0.75KW
關鍵詞：90KW適配平行軸斜齒輪減速器_FA127RF77-Y0.75KW_FA127RF77-Y4KW
FA127RF77-Y0.75KW減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA127RF77-Y0.75KW | 3031 | 0.75KW | 0.47r/min | 13400N.m | 752kg | 87600N | 0.90 |
| FA127RF77-Y0.75KW | 2672 | 0.75KW | 0.54r/min | 12100N.m | 752kg | 90000N | 1.00 |
| FA127RF77-Y0.75KW | 2357 | 0.75KW | 0.61r/min | 10600N.m | 752kg | 90000N | 1.15 |
| FA127RF77-Y0.75KW | 2038 | 0.75KW | 0.70r/min | 9150N.m | 752kg | 90000N | 1.30 |
| FA127RF77-Y0.75KW | 1784 | 0.75KW | 0.80r/min | 7960N.m | 752kg | 90000N | 1.50 |
| FA127RF77-Y0.75KW | 1606 | 0.75KW | 0.89r/min | 7150N.m | 752kg | 90000N | 1.70 |
FA127RF77-Y4KW減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA127RF77-Y4KW | 549 | 4KW | 2.70r/min | 13300N.m | 782kg | 87800N | 0.90 |
| FA127RF77-Y4KW | 495 | 4KW | 3.00r/min | 12000N.m | 782kg | 90000N | 1.00 |
| FA127RF77-Y4KW | 428 | 4KW | 3.40r/min | 10400N.m | 782kg | 90000N | 1.15 |
| FA127RF77-Y4KW | 376 | 4KW | 3.90r/min | 9140N.m | 782kg | 90000N | 1.30 |

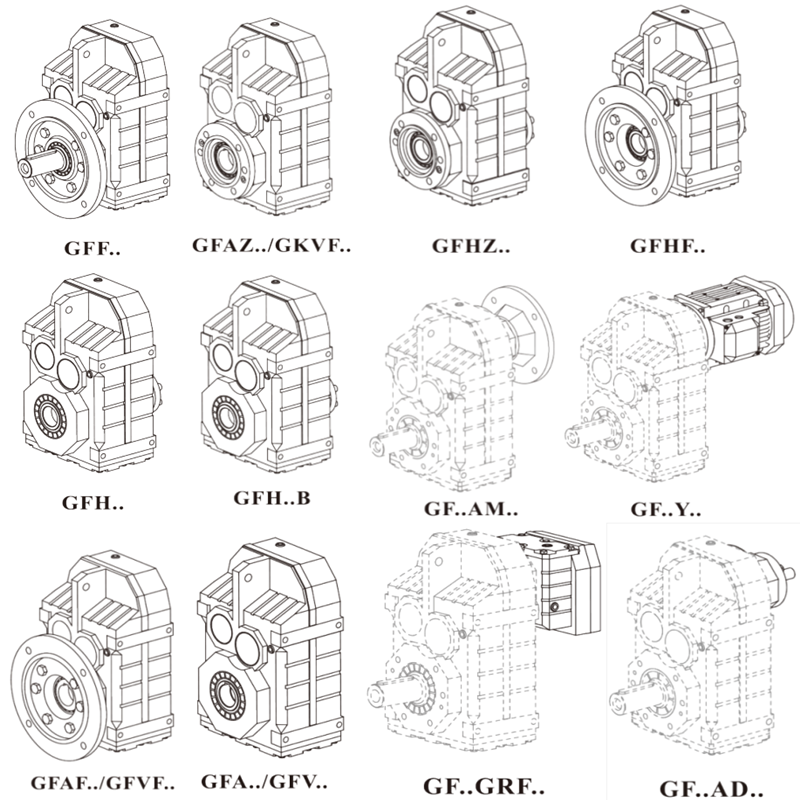

FA127RF77-Y0.75KW減速機電動機類型：
F127RF77-Y0.75KW底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA127BRF77-Y0.75KW底腳空心軸安裝平行軸—斜齒輪減速機
FV127BRF77-Y0.75KW底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA127RF77-Y0.75KW空心軸安裝平行軸—斜齒輪減速機
FV127RF77-Y0.75KW花鍵空心軸安裝平行軸—斜齒輪減速機
FAF127RF77-Y0.75KW是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF127RF77-Y0.75KW是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ127RF77-Y0.75KW是B14法蘭安裝平行軸—斜齒輪減速機
FVZ127RF77-Y0.75KW是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF127RF77-Y0.75KW是B5法蘭安裝平行軸—斜齒輪減速機
FH127BRF77-Y0.75KW底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH127RF77-Y0.75KW是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF127RF77-Y0.75KW是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ127RF77-Y0.75KW是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

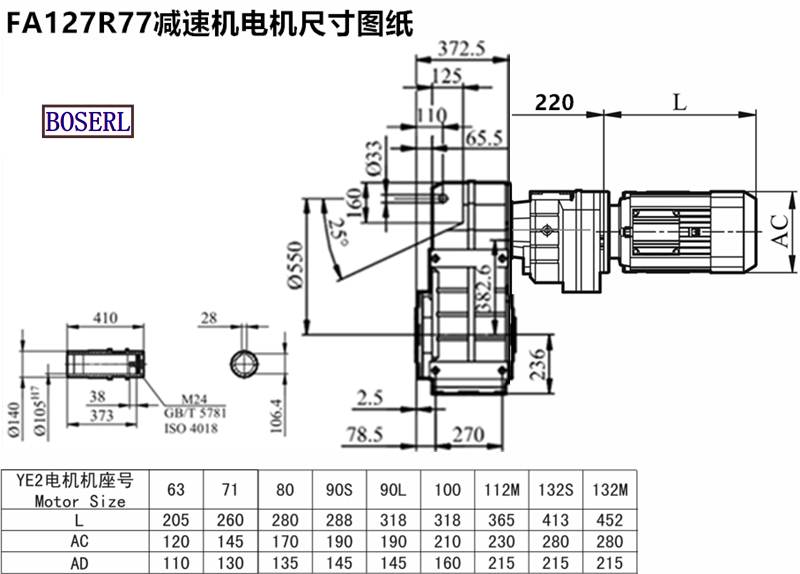

FA127RF77-Y0.75KW減速機電動機安裝尺寸圖紙
FA127RF77-Y0.75KW減速機電動機生產廠家，看廠請?zhí)崆叭祛A約三相變頻電機減速機
關鍵詞:FA系列減速機與電機_變頻減速機_三相變頻電機減速器一套_變頻減速電機_變頻剎車電動機齒輪箱_三相變頻電機減速機_變頻減速電機生產廠家
FA系列減速機型號：FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機
FA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 90KW適配平行軸斜齒輪減速器 FA127RF77-Y0.75KW FA127RF77-Y4KW
