KF77R37DM71S4詳細信息

prevnext

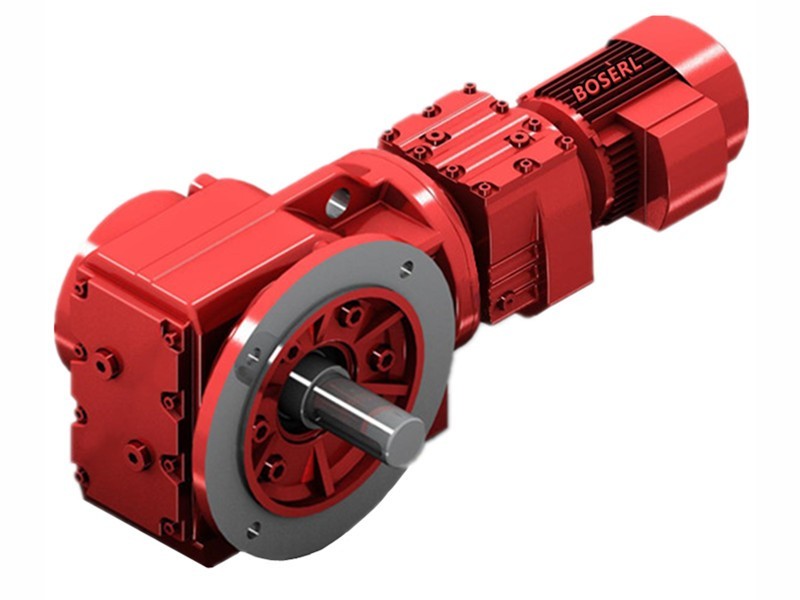

KF77R37DM71S4

訂購熱線：13360667204

詳細信息

關鍵詞：4KW伺服電機傘齒輪減速電機_KF77R37DM71S4_KF77R37DR80K4

KF77R37DM71S4減速機電機參數：

型號	減速比	功率	轉數	扭矩	重量	力矩	安全系數
KF77R37DM71S4	1053	0.25KW	1.20r/min	1720N.m	75.5kg	14000N	0.90
KF77R37DM71S4	924	0.25KW	1.40r/min	1510N.m	75.5kg	15600N	1.00
KF77R37DM71S4	815	0.25KW	1.60r/min	1330N.m	75.5kg	16700N	1.15
KF77R37DM71S4	709	0.25KW	1.80r/min	1110N.m	75.5kg	17800N	1.40
KF77R37DM71S4	622	0.25KW	2.10r/min	970N.m	75.5kg	18400N	1.60
KF77R37DM71S4	552	0.25KW	2.40r/min	870N.m	75.5kg	18700N	1.75
KF77R37DM71S4	485	0.25KW	2.70r/min	765N.m	75.5kg	19100N	2.00
KF77R37DM71S4	428	0.25KW	3.00r/min	675N.m	75.5kg	19300N	2.30
KF77R37DM71S4	367	0.25KW	3.50r/min	590N.m	75.5kg	19500N	2.60
KF77R37DM71S4	328	0.25KW	4.00r/min	525N.m	75.5kg	19600N	2.90
KF77R37DM71S4	290	0.25KW	4.50r/min	465N.m	75.5kg	19700N	3.30
KF77R37DM71S4	252	0.25KW	5.20r/min	400N.m	75.5kg	19900N	3.80
KF77R37DM71S4	221	0.25KW	5.90r/min	350N.m	75.5kg	19900N	4.40
KF77R37DM71S4	195	0.25KW	6.70r/min	310N.m	75.5kg	20000N	5.00
KF77R37DM71S4	175	0.25KW	7.40r/min	270N.m	75.5kg	20000N	5.60

KF77R37DR80K4減速機電機參數：

型號	減速比	功率	轉數	扭矩	重量	力矩	安全系數
KF77R37DR80K4	485	0.55KW	2.80r/min	1660N.m	80.5kg	14600N	0.95
KF77R37DR80K4	428	0.55KW	3.20r/min	1460N.m	80.5kg	16000N	1.05
KF77R37DR80K4	367	0.55KW	3.80r/min	1260N.m	80.5kg	17100N	1.20
KF77R37DR80K4	328	0.55KW	4.20r/min	1120N.m	80.5kg	17800N	1.35
KF77R37DR80K4	290	0.55KW	4.80r/min	1000N.m	80.5kg	18300N	1.55
KF77R37DR80K4	252	0.55KW	5.50r/min	860N.m	80.5kg	18800N	1.80
KF77R37DR80K4	221	0.55KW	6.20r/min	755N.m	80.5kg	19100N	2.00
KF77R37DR80K4	195	0.55KW	7.10r/min	665N.m	80.5kg	19300N	2.30
KF77R37DR80K4	175	0.55KW	7.90r/min	595N.m	80.5kg	19500N	2.60
KF77R37DR80K4	154	0.55KW	9.00r/min	525N.m	80.5kg	19600N	3.00

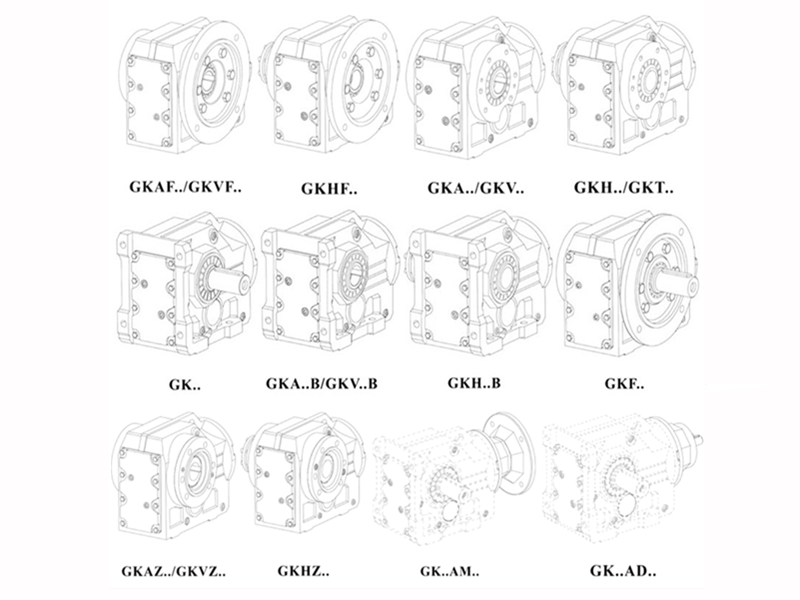

KF77R37DM71S4減速機類型：

K77R37DM71S4底腳安裝斜齒輪—傘齒輪減速電機

KA77BR37DM71S4底腳空心軸安裝斜齒輪—傘齒輪減速電機

KV77BR37DM71S4底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KH77BR37DM71S4底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機

KF77R37DM71S4B5法蘭安裝斜齒輪—傘齒輪減速電機

KAF77R37DM71S4B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機

KVF77R37DM71S4B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KHF77R37DM71S4B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

KA77R37DM71S4空心軸斜齒輪─傘齒輪減速電機

KV77R37DM71S4花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KH77R37DM71S4空心軸鎖緊盤斜齒輪─傘齒輪減速電機

KT77R37DM71S4空心軸安裝斜齒輪—傘齒輪減速電機

KAZ77R37DM71S4B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機

KVZ77R37DM71S4B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機

KHZ77R37DM71S4B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

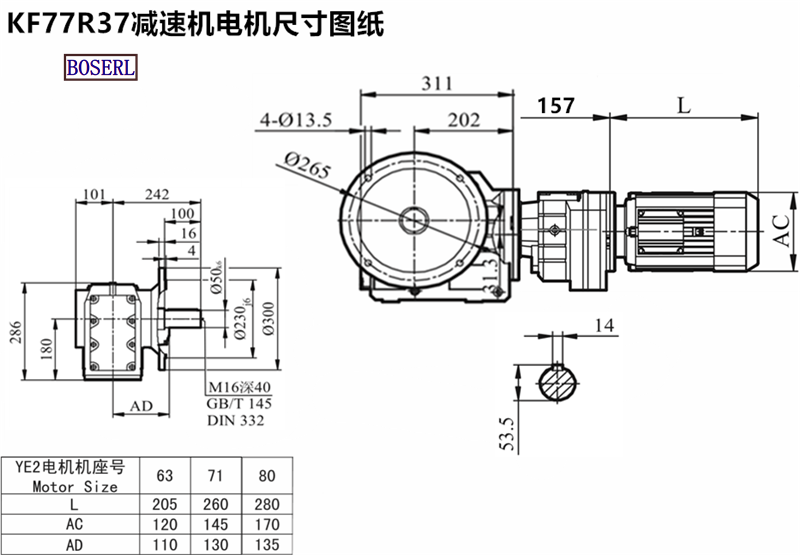

KF77R37DM71S4減速機馬達安裝尺寸圖紙

KF77R37DM71S4減速機電機生產廠家，看廠請?zhí)崆叭祛A(yù)約大功率減速電機

關鍵詞:KF系列齒輪減速機與電機_大功率減速電機_大負載減速器_大負載減速機電機_大功率電機減速機_大功率電動機減速機_大負載電動機減速機一套生產廠家

KF系列減速機型號：KF37減速機,KF47減速機,KF57減速機,KF67減速機,KF77減速機,KF87減速機,KF97減速機,KF107減速機,KF127減速機,KF157減速機,KF167減速機,KF187減速機

KF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求

標簽: 4KW伺服電機傘齒輪減速電機 KF77R37DM71S4 KF77R37DR80K4
