RF47DM71S4詳細信息
RF47DM71S4
訂購熱線：13360667204
關鍵詞：45KW380伏減速電機_RF47DM71S4_RF47DT71S4
RF47DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF47DM71S4 | 176.88 | 0.25KW | 7.40rpm | 320N.m | 20kg | 5280N | 0.90 |
| RF47DM71S4 | 162.94 | 0.25KW | 8.00rpm | 295N.m | 20kg | 5420N | 1.00 |
| RF47DM71S4 | 139.99 | 0.25KW | 9.30rpm | 255N.m | 20kg | 5630N | 1.15 |
| RF47DM71S4 | 121.87 | 0.25KW | 11.0rpm | 220N.m | 20kg | 5770N | 1.35 |
| RF47DM71S4 | 114.17 | 0.25KW | 11.0rpm | 205N.m | 20kg | 5820N | 1.45 |
| RF47DM71S4 | 100.86 | 0.25KW | 13.0rpm | 185N.m | 20kg | 5900N | 1.60 |
| RF47DM71S4 | 93.68 | 0.25KW | 14.0rpm | 172N.m | 20kg | 5940N | 1.75 |
| RF47DM71S4 | 84.90 | 0.25KW | 15.0rpm | 156N.m | 20kg | 5980N | 1.90 |
| RF47DM71S4 | 76.23 | 0.25KW | 17.0rpm | 140N.m | 20kg | 6020N | 2.10 |
| RF47DM71S4 | 68.54 | 0.25KW | 19.0rpm | 126N.m | 20kg | 6050N | 2.40 |
| RF47DM71S4 | 64.21 | 0.25KW | 20.0rpm | 118N.m | 20kg | 6070N | 2.50 |
| RF47DM71S4 | 56.73 | 0.25KW | 23.0rpm | 104N.m | 20kg | 6090N | 2.90 |
| RF47DM71S4 | 52.69 | 0.25KW | 25.0rpm | 97N.m | 20kg | 6100N | 3.10 |
| RF47DM71S4 | 47.75 | 0.25KW | 27.0rpm | 88N.m | 20kg | 6080N | 3.40 |
RF47DT71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF47DT71S4 | 176.88 | 0.25KW | 7.40rpm | 320N.m | 20kg | 5280N | 0.90 |
| RF47DT71S4 | 162.94 | 0.25KW | 8.00rpm | 295N.m | 20kg | 5420N | 1.00 |
| RF47DT71S4 | 139.99 | 0.25KW | 9.30rpm | 255N.m | 20kg | 5630N | 1.15 |
| RF47DT71S4 | 121.87 | 0.25KW | 11.0rpm | 220N.m | 20kg | 5770N | 1.35 |
| RF47DT71S4 | 114.17 | 0.25KW | 11.0rpm | 205N.m | 20kg | 5820N | 1.45 |
| RF47DT71S4 | 100.86 | 0.25KW | 13.0rpm | 185N.m | 20kg | 5900N | 1.60 |
| RF47DT71S4 | 93.68 | 0.25KW | 14.0rpm | 172N.m | 20kg | 5940N | 1.75 |
| RF47DT71S4 | 84.90 | 0.25KW | 15.0rpm | 156N.m | 20kg | 5980N | 1.90 |
| RF47DT71S4 | 76.23 | 0.25KW | 17.0rpm | 140N.m | 20kg | 6020N | 2.10 |
| RF47DT71S4 | 68.54 | 0.25KW | 19.0rpm | 126N.m | 20kg | 6050N | 2.40 |
| RF47DT71S4 | 64.21 | 0.25KW | 20.0rpm | 118N.m | 20kg | 6070N | 2.50 |
| RF47DT71S4 | 56.73 | 0.25KW | 23.0rpm | 104N.m | 20kg | 6090N | 2.90 |
| RF47DT71S4 | 52.69 | 0.25KW | 25.0rpm | 97N.m | 20kg | 6100N | 3.10 |
| RF47DT71S4 | 47.75 | 0.25KW | 27.0rpm | 88N.m | 20kg | 6080N | 3.40 |
RF47DM71S4齒輪減速機馬達類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

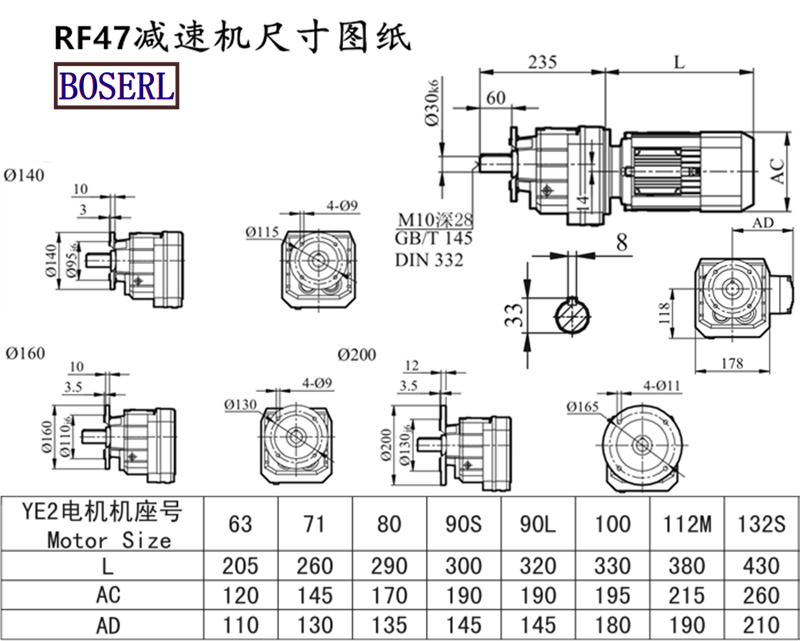

RF47DM71S4齒輪減速機馬達安裝尺寸圖紙
RF47DM71S4齒輪減速機馬達生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
立式減速機應用案例展示：
關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家
RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機
RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 45KW380伏減速電機 RF47DM71S4 RF47DT71S4
- 上一條RF47DV71S4
- 下一條RF47DRS71S4
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| RF47DM71S4減速機樣本 |
|
| RF47DM71S4減速機三維圖紙 |
|
