SF37DV71S4詳細信息
SF37DV71S4
訂購熱線：13360667204
關鍵詞：3KW調速減速電機一體機_SF37DV71S4_SF37DM71S4
SF37DV71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SF37DV71S4 | 98.80 | 0.25KW | 13.0rpm | 108N.m | 17kg | 3000N | 0.80 |
| SF37DV71S4 | 86.36 | 0.25KW | 15.0rpm | 96N.m | 17kg | 3000N | 0.90 |
| SF37DV71S4 | 80.96 | 0.25KW | 16.0rpm | 91N.m | 17kg | 3000N | 0.95 |
| SF37DV71S4 | 71.44 | 0.25KW | 18.0rpm | 81N.m | 17kg | 3000N | 1.05 |
| SF37DV71S4 | 63.33 | 0.25KW | 21.0rpm | 73N.m | 17kg | 3000N | 1.10 |
| SF37DV71S4 | 55.93 | 0.25KW | 23.0rpm | 78N.m | 17kg | 3000N | 1.05 |
| SF37DV71S4 | 51.30 | 0.25KW | 25.0rpm | 72N.m | 17kg | 3000N | 1.15 |
| SF37DV71S4 | 43.68 | 0.25KW | 30.0rpm | 62N.m | 17kg | 3000N | 1.30 |
| SF37DV71S4 | 37.66 | 0.25KW | 35.0rpm | 54N.m | 17kg | 3000N | 1.45 |
| SF37DV71S4 | 35.10 | 0.25KW | 37.0rpm | 51N.m | 17kg | 3000N | 1.55 |
| SF37DV71S4 | 30.68 | 0.25KW | 42.0rpm | 45N.m | 17kg | 3000N | 1.70 |
| SF37DV71S4 | 28.76 | 0.25KW | 45.0rpm | 42N.m | 17kg | 3000N | 1.80 |
| SF37DV71S4 | 25.38 | 0.25KW | 51.0rpm | 37N.m | 17kg | 3000N | 2.00 |
| SF37DV71S4 | 22.50 | 0.25KW | 58.0rpm | 33N.m | 17kg | 3000N | 2.20 |
| SF37DV71S4 | 19.89 | 0.25KW | 65.0rpm | 32N.m | 17kg | 2870N | 1.65 |
| SF37DV71S4 | 18.24 | 0.25KW | 71.0rpm | 29N.m | 17kg | 2820N | 1.80 |
| SF37DV71S4 | 15.53 | 0.25KW | 84.0rpm | 25N.m | 17kg | 2710N | 2.00 |
| SF37DV71S4 | 13.39 | 0.25KW | 97.0rpm | 22N.m | 17kg | 2620N | 2.30 |
| SF37DV71S4 | 12.48 | 0.25KW | 104rpm | 20N.m | 17kg | 2570N | 2.40 |
| SF37DV71S4 | 10.91 | 0.25KW | 119rpm | 18N.m | 17kg | 2480N | 2.70 |
| SF37DV71S4 | 10.23 | 0.25KW | 127rpm | 17N.m | 17kg | 2440N | 2.80 |
| SF37DV71S4 | 9.02 | 0.25KW | 144rpm | 15N.m | 17kg | 2360N | 3.10 |
| SF37DV71S4 | 8.00 | 0.25KW | 162rpm | 13N.m | 17kg | 2280N | 3.40 |
| SF37DV71S4 | 6.80 | 0.25KW | 191rpm | 11N.m | 17kg | 2180N | 3.80 |
SF37DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SF37DM71S4 | 98.80 | 0.25KW | 13.0rpm | 108N.m | 17kg | 3000N | 0.80 |
| SF37DM71S4 | 86.36 | 0.25KW | 15.0rpm | 96N.m | 17kg | 3000N | 0.90 |
| SF37DM71S4 | 80.96 | 0.25KW | 16.0rpm | 91N.m | 17kg | 3000N | 0.95 |
| SF37DM71S4 | 71.44 | 0.25KW | 18.0rpm | 81N.m | 17kg | 3000N | 1.05 |
| SF37DM71S4 | 63.33 | 0.25KW | 21.0rpm | 73N.m | 17kg | 3000N | 1.10 |
| SF37DM71S4 | 55.93 | 0.25KW | 23.0rpm | 78N.m | 17kg | 3000N | 1.05 |
| SF37DM71S4 | 51.30 | 0.25KW | 25.0rpm | 72N.m | 17kg | 3000N | 1.15 |
| SF37DM71S4 | 43.68 | 0.25KW | 30.0rpm | 62N.m | 17kg | 3000N | 1.30 |
| SF37DM71S4 | 37.66 | 0.25KW | 35.0rpm | 54N.m | 17kg | 3000N | 1.45 |
| SF37DM71S4 | 35.10 | 0.25KW | 37.0rpm | 51N.m | 17kg | 3000N | 1.55 |
| SF37DM71S4 | 30.68 | 0.25KW | 42.0rpm | 45N.m | 17kg | 3000N | 1.70 |
| SF37DM71S4 | 28.76 | 0.25KW | 45.0rpm | 42N.m | 17kg | 3000N | 1.80 |
| SF37DM71S4 | 25.38 | 0.25KW | 51.0rpm | 37N.m | 17kg | 3000N | 2.00 |
| SF37DM71S4 | 22.50 | 0.25KW | 58.0rpm | 33N.m | 17kg | 3000N | 2.20 |
| SF37DM71S4 | 19.89 | 0.25KW | 65.0rpm | 32N.m | 17kg | 2870N | 1.65 |
| SF37DM71S4 | 18.24 | 0.25KW | 71.0rpm | 29N.m | 17kg | 2820N | 1.80 |
| SF37DM71S4 | 15.53 | 0.25KW | 84.0rpm | 25N.m | 17kg | 2710N | 2.00 |
| SF37DM71S4 | 13.39 | 0.25KW | 97.0rpm | 22N.m | 17kg | 2620N | 2.30 |
| SF37DM71S4 | 12.48 | 0.25KW | 104rpm | 20N.m | 17kg | 2570N | 2.40 |
| SF37DM71S4 | 10.91 | 0.25KW | 119rpm | 18N.m | 17kg | 2480N | 2.70 |
| SF37DM71S4 | 10.23 | 0.25KW | 127rpm | 17N.m | 17kg | 2440N | 2.80 |
| SF37DM71S4 | 9.02 | 0.25KW | 144rpm | 15N.m | 17kg | 2360N | 3.10 |
| SF37DM71S4 | 8.00 | 0.25KW | 162rpm | 13N.m | 17kg | 2280N | 3.40 |
| SF37DM71S4 | 6.80 | 0.25KW | 191rpm | 11N.m | 17kg | 2180N | 3.80 |
SF37DV71S4齒輪減速機馬達類型：
S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

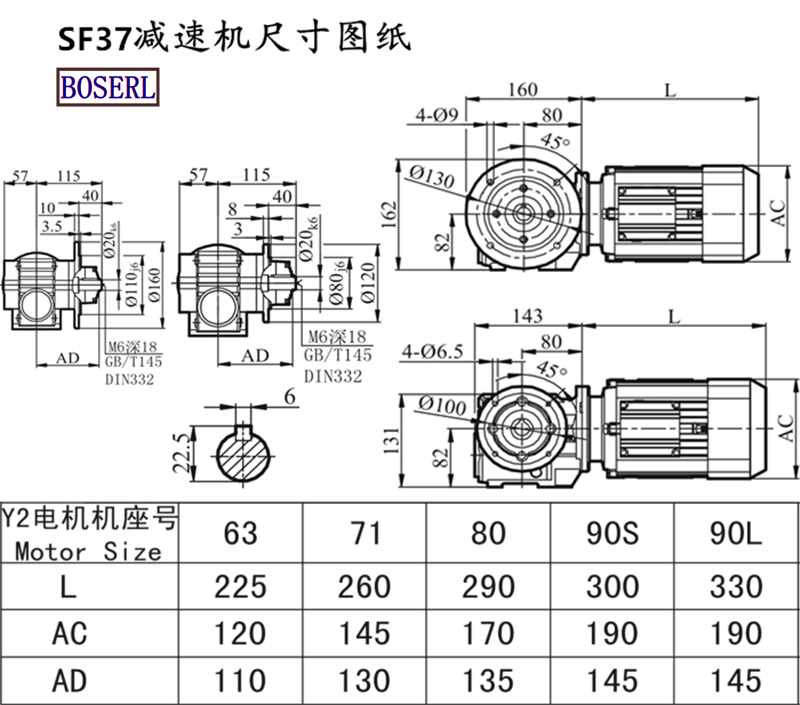

SF37DV71S4齒輪減速機馬達安裝尺寸圖紙
SF37DV71S4齒輪減速機馬達生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
蝸輪蝸桿減速機制造廠家應用案例展示：
關鍵詞:SF系列減速機_低速大扭矩減速器與電機_低轉數高扭矩減速電機一套_低速大扭矩減速機_低轉數大扭矩電機_低轉數大功率電機_SF系列減速機生產廠家
SF系列減速機型號：SF37減速機,SF47減速機,SF57減速機,SF67減速機,SF77減速機,SF87減速機,SF97減速機
SF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 3KW調速減速電機一體機 SF37DV71S4 SF37DM71S4
